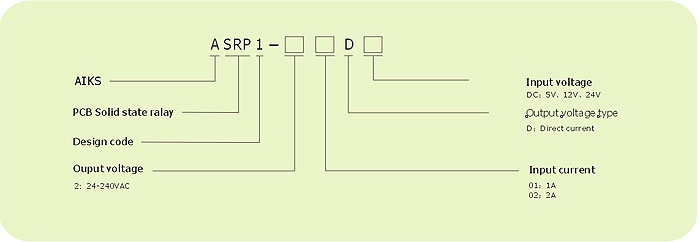

 ASRP1 series |
 |
| -This type of other products |
|
|
 |
 |
Max 1-2A switching available
AC output, DC input
PCB Installs Outline size: 24×5×20(mm) |
|
 TECHNICAL PARAMETRIC |
|
|
| Rating work current |
1A/2A |
| Breats condition the control voltage |
≤1mA |
| Inputcontrol voltage |
DC:5V、12V、24V |
| Work voltage |
24-240VAC |
| Active status instruction |
/ |
| Guarantees breakover |
/ |
| Guarantees shutdoun voltage |
/ |
| Ambient temperature |
-30℃~80℃ |
| Passes condition the pressuredrop |
≤1.3VAC |
| Make-and-break time |
10uS |
| Arequency range |
47~53Hz |
| Control current |
7~12mA |
| Dielectric Strength |
AC2500V 1min |
| Terminal structure |
Printing foundation plate post |
|
|
